LED driver for injection molding machine

The goal of our company is to offer a wide range of goods and services with consistently high quality service.

The LED driver for injection molding machines is designed to generate the current required for the LED to operate. The current flowing through the LED depends on the control signal, which can be either analog or digital. The driver can be used to manufacture lanterns and lighting systems with a power of up to 40 watts.
Order product Ask a question

Main technical parameters of the Smartdive LED driver


Parameter Meaning
Maximum current through LED 6 A*
Supply voltage range 8-30 V
Effective range of control signal voltages 0-3.3 V**
Recommended digital control signal frequency 2 kHz
Maximum control signal voltage, V Ucc
Thermostat operating temperature 100 ºC**
Temperature hysteresis 30 ºC**
Own consumption no more than 0.8 mA
Power consumption in overheat protection mode 1.3 mA

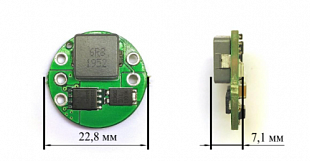

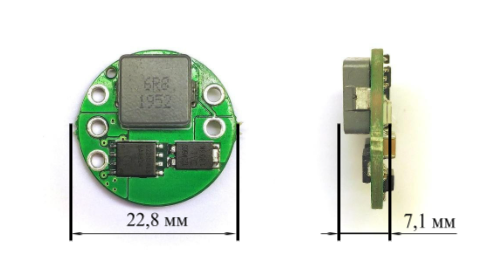

Dimensions of the device, LxWxH 22.8 x 22.8 x 7.1 mm
*With cooling
**Customizable parameter
