Underwater connector for injection molding machine

The goal of our company is to offer a wide range of goods and services with consistently high quality service.

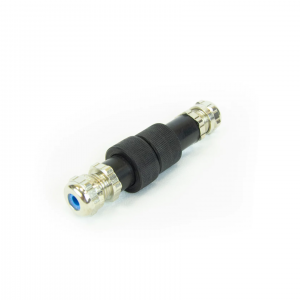

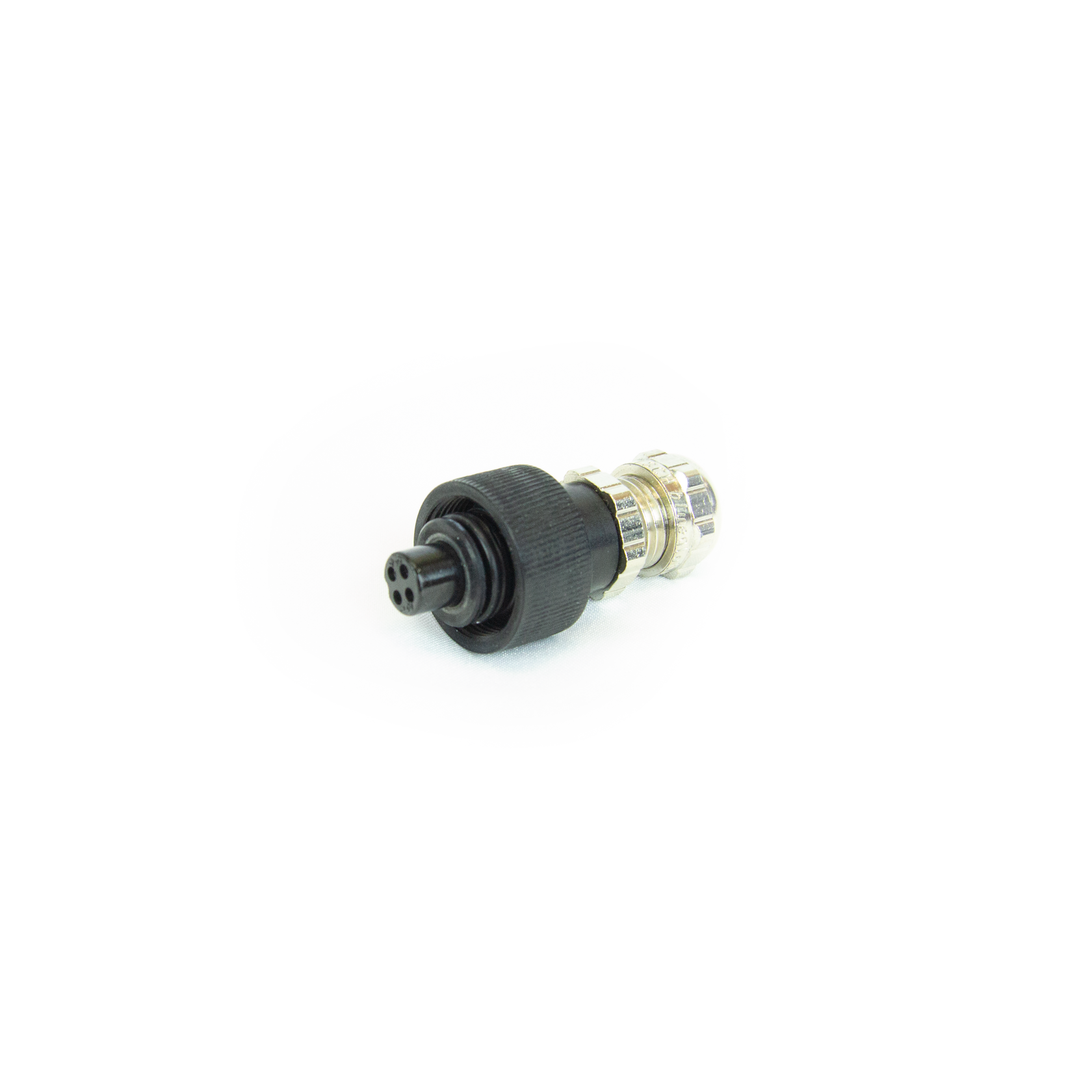

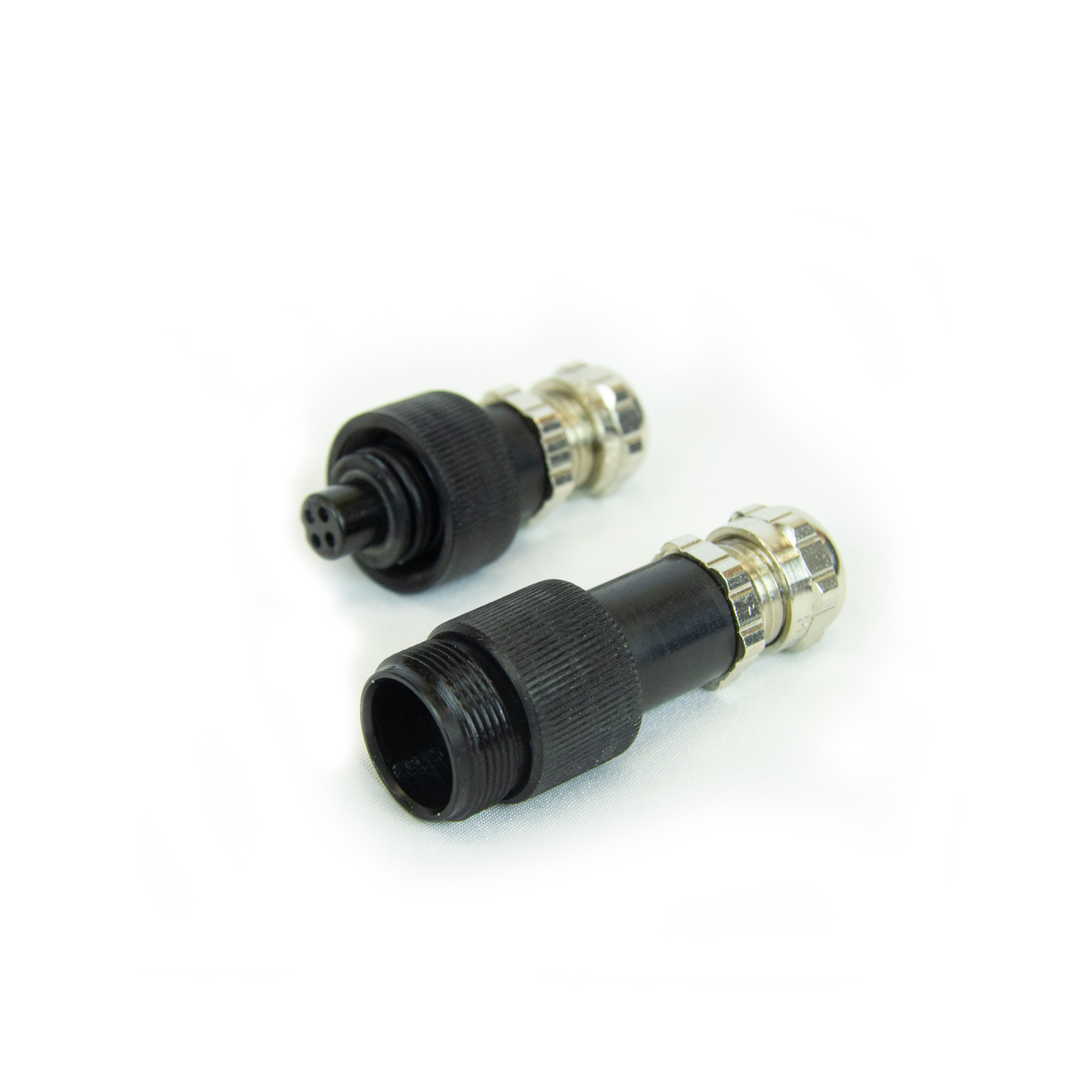

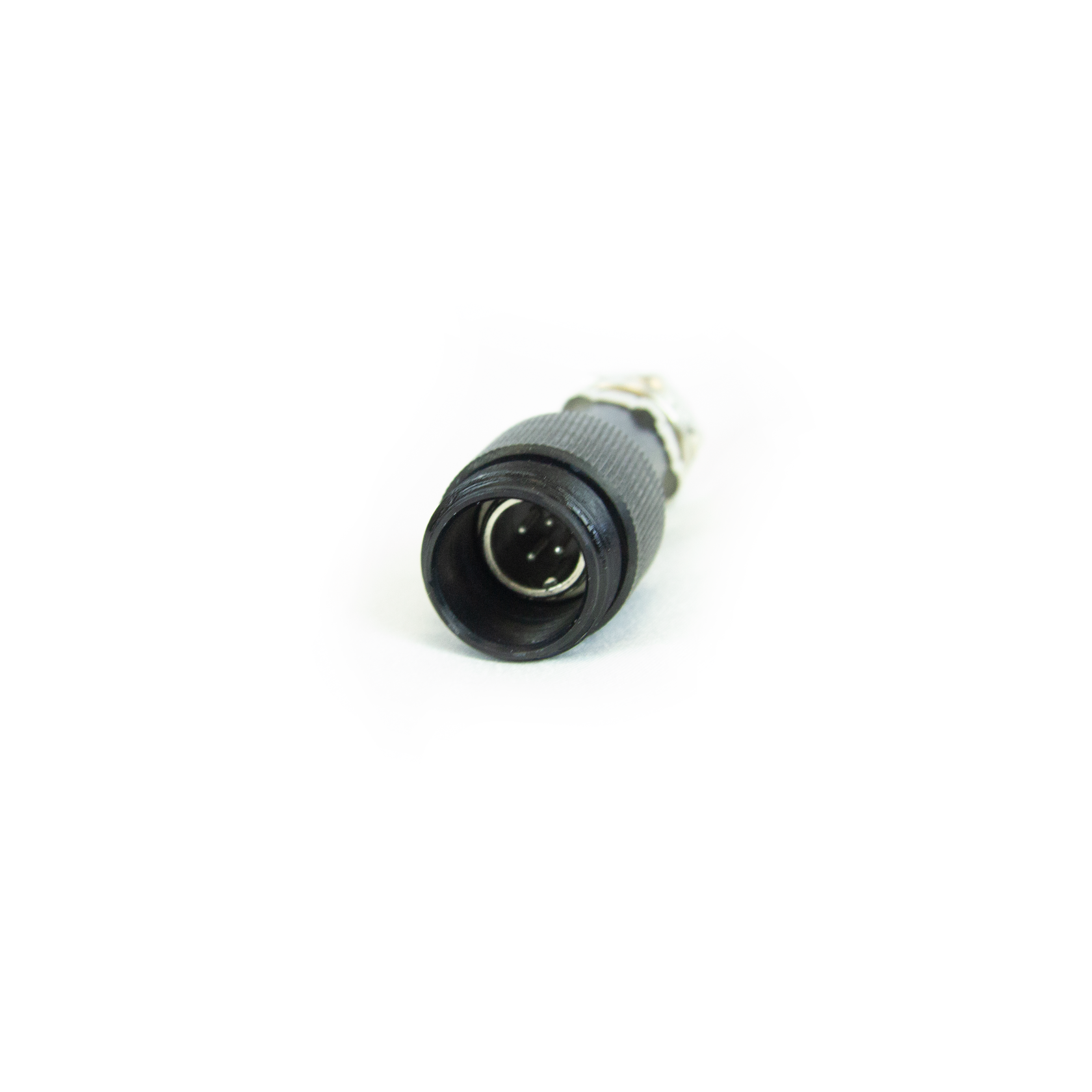

Hermetic underwater connectors for injection molding machines are designed for underwater use at depths of up to 150 meters. Hermetic connectors can be used in underwater lights, remotely controlled devices and other devices that require hermetic underwater connections. Depending on the customer's tasks, we offer 2 connector options: with a maximum operating depth of 100 and 150 meters.
Order product Ask a question

Main technical parameters of the underwater connector "Smartdive"


Parameter Meaning
Maximum working depth 100 or 150 m
Number of contacts 2-5 (optional - more)
Maximum permissible current 5A per 1 contact
Permissible cable thickness 2-8mm (3.5-7mm in 100m jack)
Connector body material Anodized aluminum AMg6
Cable gland material Nickel plated brass
Weight 77 g
Length 93 mm
Diameter 24 mm
