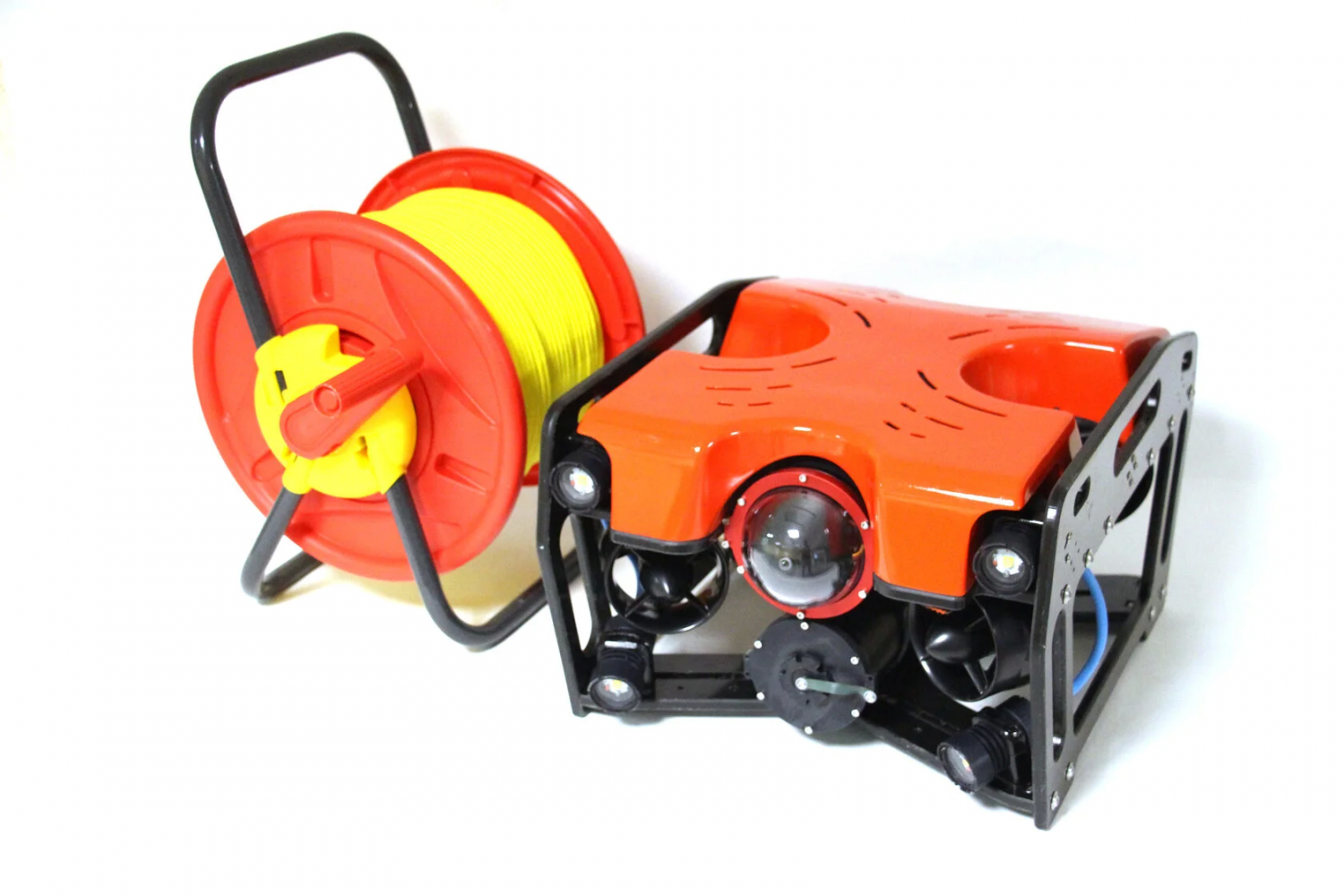

TPA "Angara TM-150" with sonar

The goal of our company is to offer a wide range of goods and services with consistently high quality service.

Sonars make the work of the ROV easier and open up new possibilities in its use. They are used to search for sunken objects and monitor underwater infrastructure objects. We equip our devices with side-view sonars "Hydra" and circular-view sonars EchoLogger.
Order product Ask a question

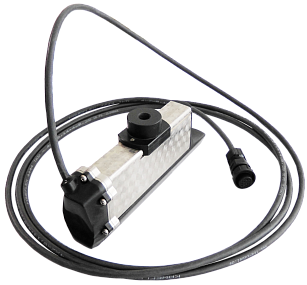

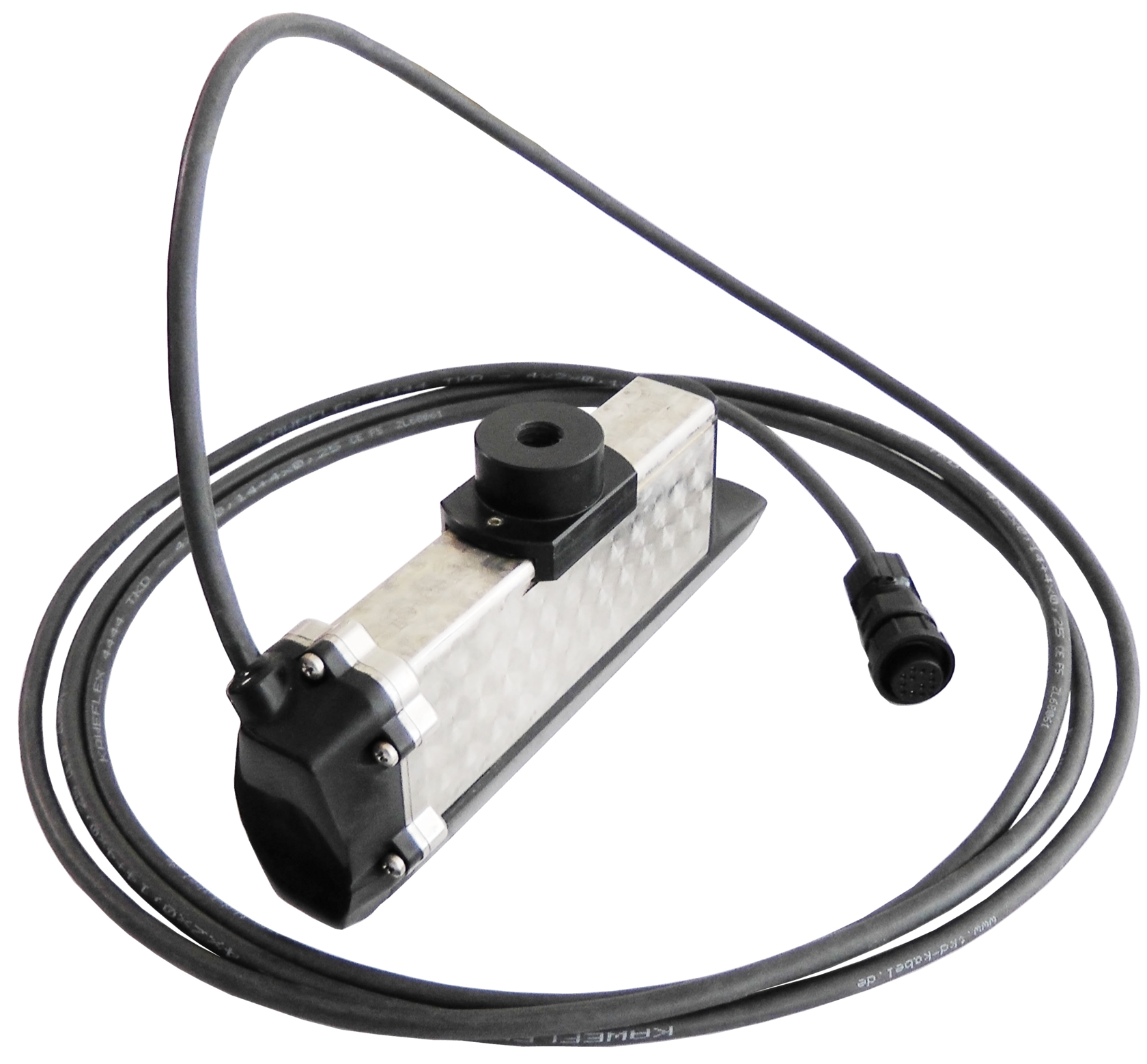

Sonar "Hydra"

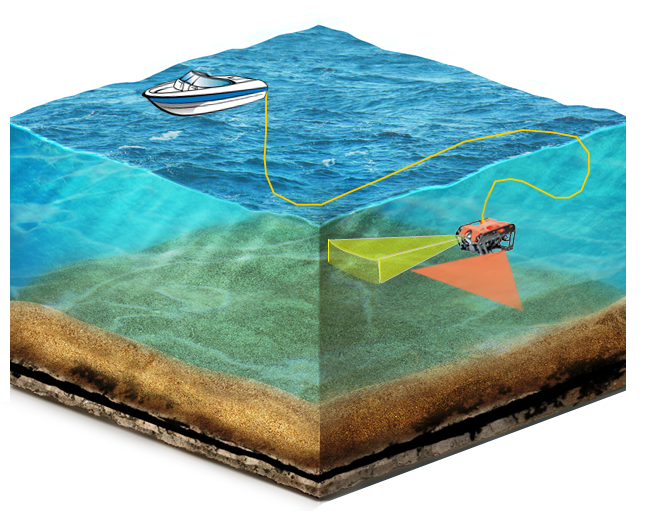

Side-scan sonar (SSS) of ultra-high resolution of the Hydra series, combined with a forward-looking locator (FLO).

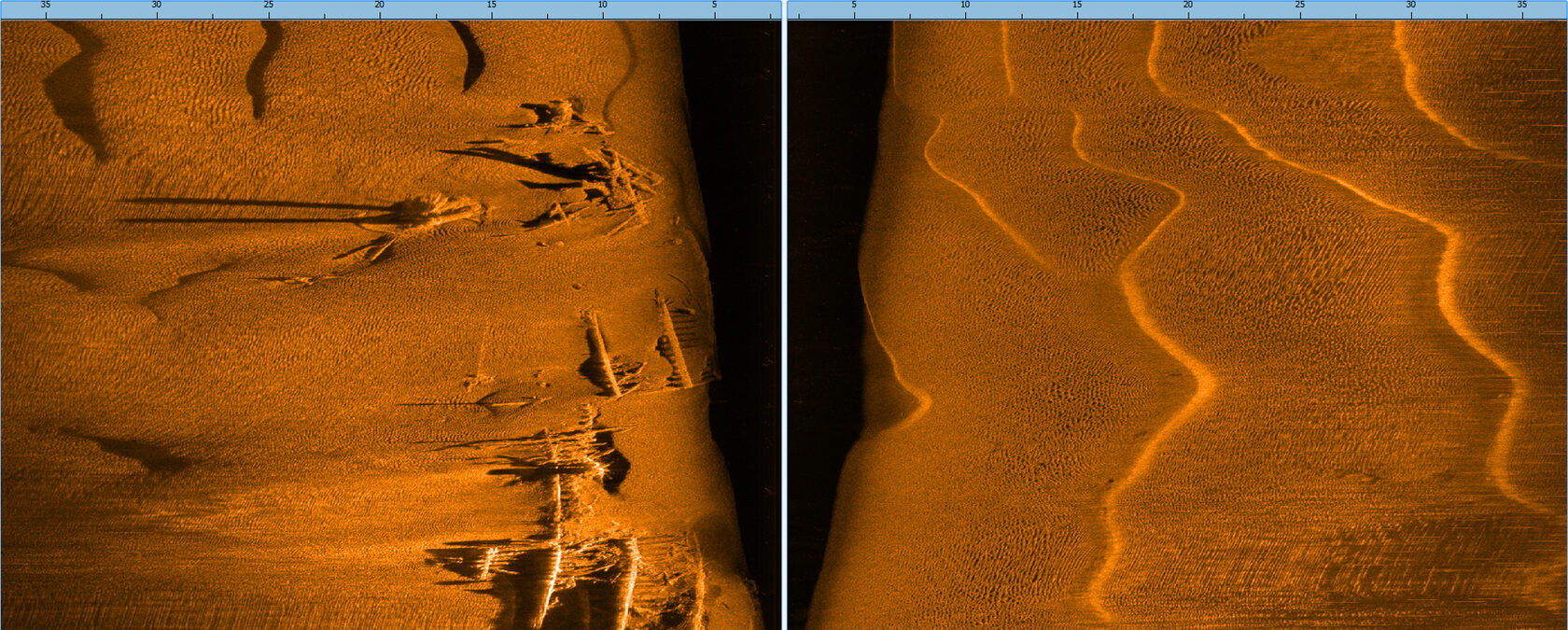

The sonar has an ultra-high range resolution (1 cm). Using a frequency of 700 kHz, the SSS provides high-quality real-time images of the bottom with photographic quality in a viewing band of up to 230 m.

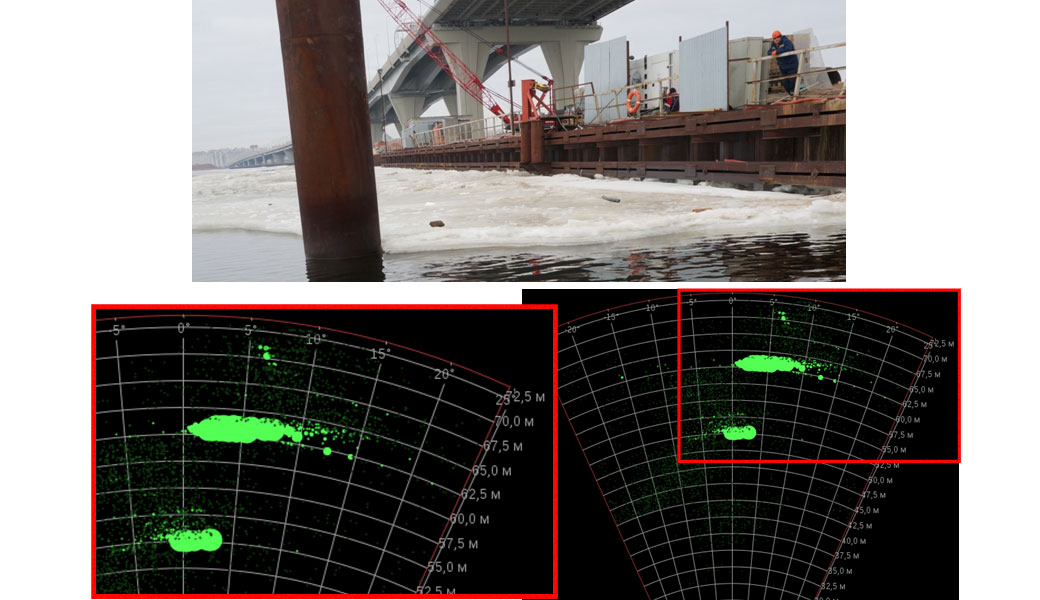

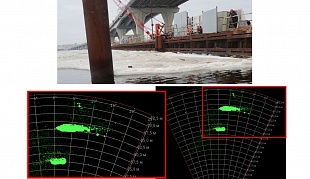

The forward-looking locator can operate simultaneously with the SSS and allows detecting objects and obstacles in the water column along the course of the apparatus. By determining the direction and dimensions of the object, the FLO allows assessing the degree of danger and the method of bypassing the obstacle.

EchoLogger Sonar

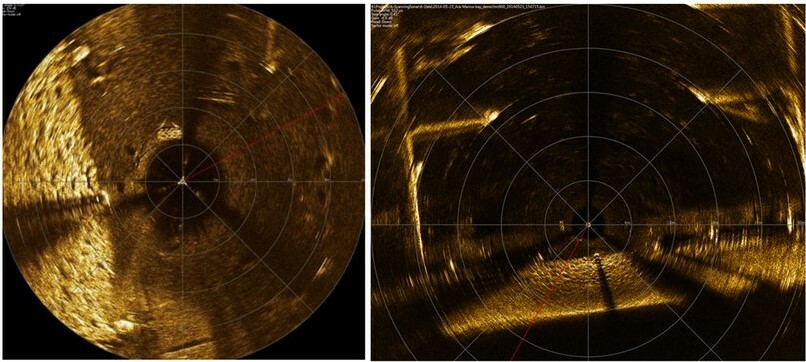

The Echologger circular scanning sonar is designed for search operations, inspection operations and improving ROV navigation. The operating frequency is 900 kHz, the scanning radius is 60 m.


Order product
Fill out an application on the website, we will contact you shortly and answer all your questions.
